Used or new
20 feet flat rack container
6.06 × 2.44 × 2.59 m outside · about 2,890 kg empty
≈ ₹1,65,000
No seller published a price for a 20 ft flat rack in India in the survey of 20 October 2026. This is a low estimate, not a listed price: sellers quote it case by case.
Method: the lowest 40 ft flat rack price (₹2,70,000, 1 listing) multiplied by the size ratio seen on dry containers: median used 20 ft price (₹1,20,000) over median used 40 ft price (₹1,95,000), i.e. 61.5%, then rounded down to ₹5,000.

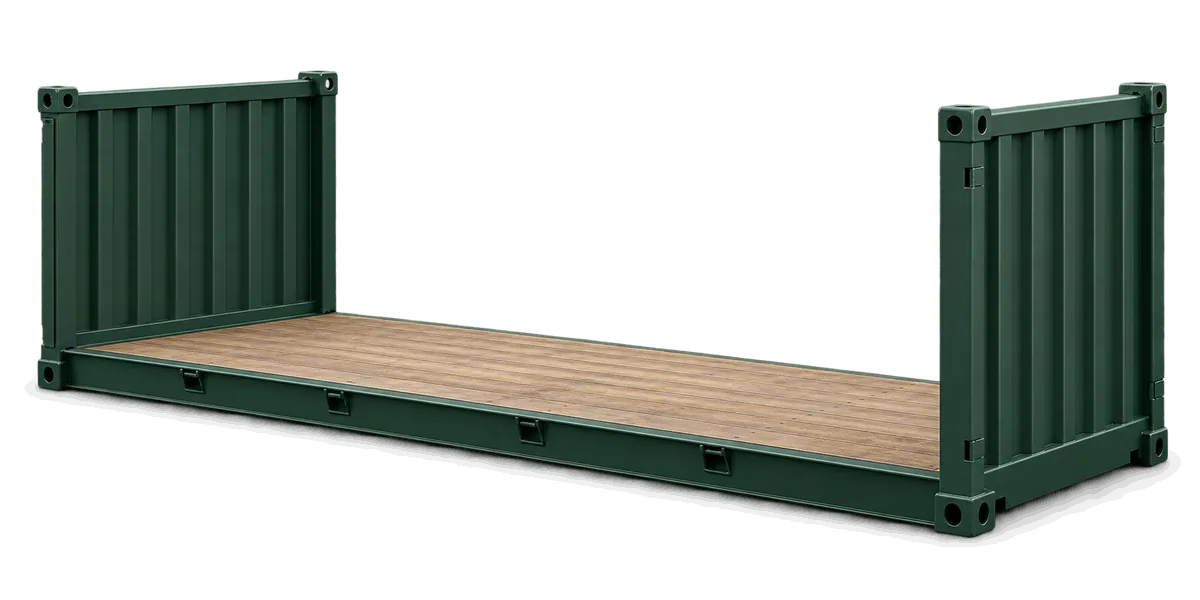

The 20 ft flat rack is a short, heavy-duty deck with an end wall at each end and nothing along the sides or overhead: a usable deck of 5,634 × 2,194 mm, end walls 2,213 mm high, and typically 31,250 kg of cargo, more than a dry 20 ft box carries; racks rated 45,000 kg gross take more. It is made for compact machines and loads too wide or too tall for any box. Partner sellers who have one quote it, delivered to your PIN code.
One free request
Up to 5 delivered quotes, without calling every yard
-
Save time
One form instead of calling seller after seller. Partner sellers who cover your PIN code contact you with a price delivered to your site.
-
Pay less
Asking prices differ widely: for a used 20 feet shipping container, half of the 116 sellers we read on 20 October 2026 ask between ₹1,04,000 and ₹1,40,000, ₹36,000 apart. Several quotes show you where the low end is.
-
Checked sellers
Quotbox checks every partner seller when it joins: an active GSTIN, its company registration and PAN, its insurance, its yard or stock, and its years in business or references. A justified complaint gets a partner removed.
Free and without obligation: you choose the seller and pay them directly. How it works
What a 20 ft flat rack is used for
What goes on a 20 ft rack is short but awkward: a compact excavator or a road roller, a generator set, a transformer, a boat on its cradle, a press or a coil of heavy cable. With no side walls, it is loaded by crane from above or by forklift from either side, and a load may stand out past the edges if the transport is planned for it.
- For longer loads (pipes, girders, steel structures), the 40 ft flat rack has a deck of 11,657 mm.
- For heavy cargo that fits inside walls, a 20 ft open top keeps it covered under a tarpaulin.
- As a fixed platform, for a stage, a ramp or a loading bay, a rack whose end walls no longer fold is still useful.
Few 20 ft racks carry a public price in India: the price box above says what we found this week and how far it can be trusted. Compare the racks in the quotes you receive, since their ratings and end walls differ.
Before you buy a 20 ft flat rack
- End walls: fixed, or collapsible so that empty racks can be stacked? The size-type code tells them apart: it ends in P1 when the end walls are fixed and P3 when they fold. On collapsible walls, have the seller fold and raise each one and lock its pins.
- The deck: look along the floor plates or timber for cracks and soft patches, and underneath for bent cross-members.
- Lashing rings: every ring should be there and free of cracks at its base, since that is where the load pulls when the truck brakes.
- The plate: the CSC plate gives the rack’s maximum gross weight; racks of the same size are rated differently.
Dimensions and capacity of the 20 ft flat rack
| Measure | Size |
|---|---|
| ISO size-type code | 22P1 or 22P3 |
| External size (L × W × H) | 6,058 × 2,438 × 2,591 mm19′ 10½″ × 8′ × 8′ 6″ |
| Usable deck (L × W × H between end walls) | 5,634 × 2,194 × 2,213 mm18′ 6″ × 7′ 2½″ × 7′ 3″ |
| Deck area | 12.4 m²133 sq ft |
| Tare weight (empty), range 2,750–3,100 kg | 2,890 kg |
| Payload (typical) | 31,250 kg |
| Maximum gross weight | 34,000 or 38,100 or 45,000 kg, depending on the rack |
Typical values (median of 5 data sheets published by CMA CGM, Evergreen, Hapag-Lloyd, ONE and ZIM, 20 October 2026); feet and inches rounded to the nearest half inch. The markings on each rack give its own tare and maximum gross weight, also on its CSC plate: a rack rated higher carries more, its maximum gross weight minus its tare. Every size in feet, cm and mm: flat rack container dimensions.
Moving a 20 ft flat rack and an oversized load
Empty, the rack weighs about 2,890 kg (2,750 to 3,100 kg on the data sheets), more than a dry 20 ft box, and comes off a truck by crane or side-lifter. A load wider or taller than the rack is out-of-gauge for the shipping line and may be over-dimensional cargo (ODC) on the road: settle the trailer, the route and any permit with the transporter before the rack is delivered (site preparation and unloading covers the unloading). For the trucking of the rack itself, the delivered price estimate gives an order of magnitude. GST is 18% under HSN 8609: ask whether the quote includes it (GST on shipping containers).
Questions about the 20 ft flat rack
What does a 20 ft flat rack cost in India?
Public prices are rare: the box at the top of this page gives what we found this week, and says when it is only an estimate. Your request goes to up to 5 partner sellers who cover your PIN code and supply racks; they quote it with delivery.
20 ft or 40 ft flat rack?
Choose by the length of the load: 5,634 mm of deck on the 20 ft rack, 11,657 mm on the 40 ft. Weight does not decide it on its own: racks of both sizes are rated differently (up to 45,000 kg gross for the 20 ft racks, 52,500 kg for the standard 40 ft racks and 58,600 kg for the 40 ft high cube racks on the data sheets we read), so compare the CSC plates of the racks you are offered. The 40 ft rack also needs a 40 ft trailer and weighs 5,025 kg empty, against 2,890 kg.
Can a 20 ft flat rack carry an excavator?
A compact one, if it fits on the deck (2,194 mm of usable width on the data sheets) and within the payload of the rack you are offered. It is driven or craned on, then chained to the lashing rings. A machine wider than the rack itself (2,438 mm) stands out at the sides: the shipping line treats it as out-of-gauge, and on the road it may be over-dimensional cargo.
